MiniXL Optical Assembly 0.1.0
| Hardware Component | |
|---|---|
| Description | Achromatic fluorescence imaging optics with 3.5 mm FOV, ~3 um resolution, and 1.9 mm working distance. Modular design supports cortical imaging through cranial windows and deep brain imaging with implanted probes. |
| Design File URL | https://github.com/miniscope/MiniXL/tree/v0.1.1/optics |
| Hardware Type | Optical
|
| Name | MiniXL Optical Assembly |
| Project | MiniXL
|
| Source Path | optics |
| Version | 0.1.0 |
| Backlinks | |
| Has component | MiniXL/Release/0.1.1 |
Specifications
| Name | Value | Unit | Notes |
|---|---|---|---|
| Field of View | 3.5 | mm | |
| Resolution | ~3 | um | |
| Working Distance | 1.9 | mm |
Design Files
- zemax project: Mini_V4_FOV-3mm_NA-0d2_Good_Final_v2_07072020_Good_V2_Good.zmx
- zemax archive: Mini_V4_FOV-3mm_NA-0d2_Good_Final_v2_07072020_Good_V2_Good.zar
- lens data: Mini_V4_FOV-3mm_NA-0d2_Good_Final_v2_07072020_Good_V2_Good.ZDA
- plots dir: plots/

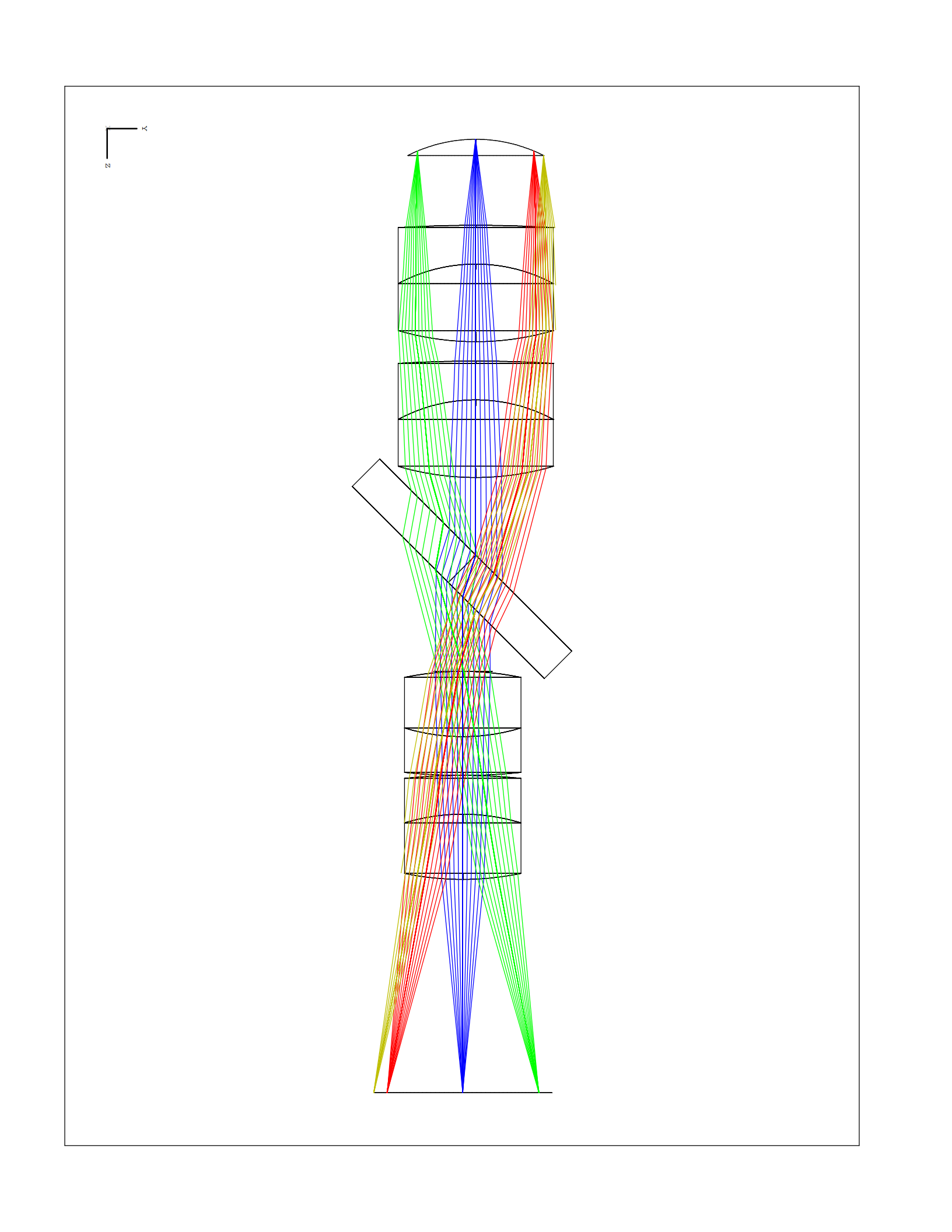

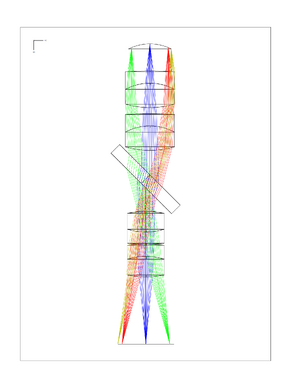

Images
