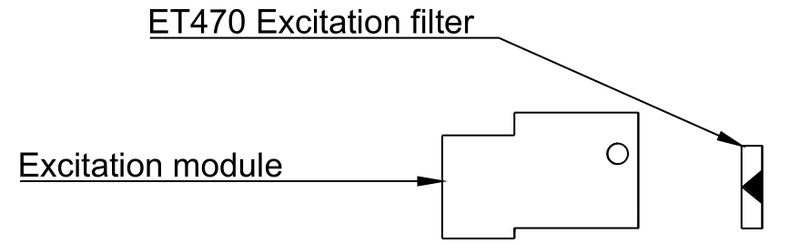

Excitation module: ET470 excitation filter orientation. The coated surface faces the LED PCB.
Source: ACAN 2023 Miniscope Assembly Tutorial (Federico N. Sangiuliano Jimka, Miniscope team).
