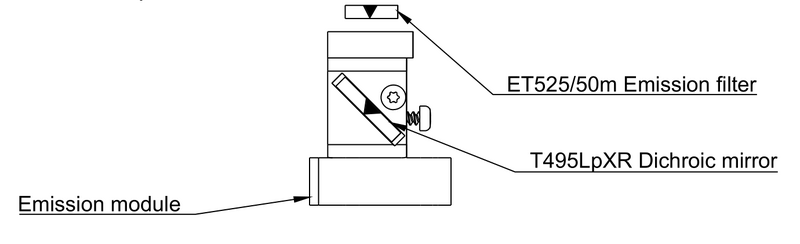

Emission module: ET525/50m emission filter orientation. The coated surface faces down, toward the optics.
Source: ACAN 2023 Miniscope Assembly Tutorial (Federico N. Sangiuliano Jimka, Miniscope team).
